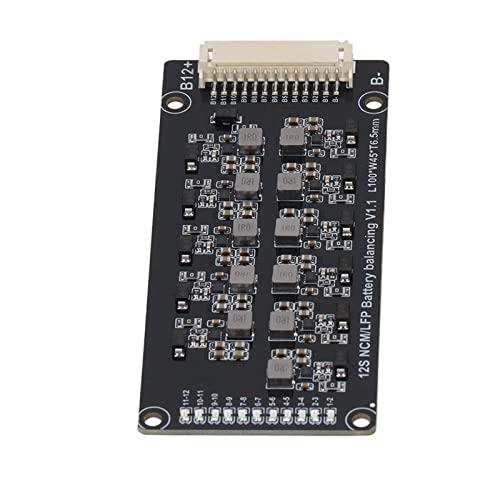

12 String LFP Battery Active Equalizer Simple Portable Battery Equalization Board

Los más destacados

Balancing Voltage: Inductive energy transfer equalization board, high current 1.2A energy transfer battery voltage balancer, significantly balance the battery voltage and improve the overall efficiency of the battery pack. Internal Trigger: This module is adjacent to the differential voltage equalization, adjacent battery voltage difference reaches 0.1V or more chip internal trigger equalization work, until the adjacent battery voltage difference within 0.03V stop working. Reduce Error: Used in the battery pack charging and discharging the existence of adjacent voltage difference trigger equalization work, the battery pack voltage error will also be pulled back to a more ideal value, reducing battery maintenance costs. Small Static Power Consumption: Built in improved ultra low internal MOS, balance current 0‐1.2A, smaller battery voltage difference. The smaller the current, the quiescent power consumption does not exceed 20μA. Easy Installation: Our equalizer is very easy to install, just follow the normal process to operate successfully, it is also very friendly for novices.
